Recognizing the Function of a Step-Up Transformer

pad mounted step up transformer

In a Step Up Transformer, there are a lot more turns on the additional coil contrasted to the primary coils. The present which flows throughout the Primary coil is a lot greater contrasted to secondary coil. It essentially converts low voltage, high-current to high voltage-low existing i.e. the voltage has been Stepped Up. Hence the name, Step Up Transformer.

Károly Zipernowsky, Ottó Bláthy and Miksa Déri were the three designers who designed Step Down Transformer in 1884, which led the way for the layout of Step Up Transformer.

Table of Contents

Building of Step Up Transformers

Building of Step Up Transformers include the building up of the winding, the units and other accessories together with the Core of the Transformer. Below is the in-depth treatment of building of the Step Up Transformer.

Step Up Transformer Core

Winding( s).

Step Up Transformer Core
Step Up Transformer Core

To develop the core of the Transformer, a high penetrable material is utilized. To form the Core, slim Silicon Steel is put together and firmly secured which is laminated. The preamble material which is made use of in creating of the core is created to let the magnetic change to move with much less loss.

The Core’s property limits the magnetic field lines in the bordering air, leading to boosted Transformer efficiency.

To reduce power losses, the Core ought to be constructed from materials that are much less prone to threat, such as Silicon Steel. Using other Ferro-magnetic products may lead to Hysteresis Loss and Eddy existing Loss, which can reduce the efficiency of the system.

The windings play an essential function in transferring the electrical currents to the transformers. They are specifically crafted to offer cooling down to the transformers and sustain the various operational and testing situations.

The Primary winding has thick cord with less turns, while the Secondary winding has thinner cable with even more turns. This style enables the Primary winding to manage reduced power voltage, while the Secondary winding can handle higher voltage power.

The Step Up Transformer’s winding is crafted from a combination of Copper and Aluminium materials. While Copper is the much more expensive option, its longevity and durability make it a beneficial investment, as it extends the transformer’s life expectancy considerably when contrasted with Aluminium, the cheaper alternative.

Unlocking the Power of Step Up Transformers: An Inside Look

A detailed description of a Step Up Transformer has actually been given in addition to a layout. In this arrangement, V1 stands for the input voltage while V2 represents the outcome voltage. T1 and T2 represent the number of kip down the Primary and Secondary windings, respectively. The Primary winding functions as the input to the Transformer, while the Secondary winding acts as the result. When the Secondary winding has even more cable turns contrasted to the Primary, the result voltage will certainly be more than the input voltage.

In a Transformer, the current that flows is Alternating Current, moving back and forth in contrary instructions. This movement of electricity creates an electromagnetic field around the cable or coil, causing the magnetic poles to change when the current instructions changes.

The magnetic field induces voltage right into the cord. Likewise voltage will be induced in the 2nd coil when it is placed in a relocating electromagnetic field. This phenomenon is called as Mutual Induction. Therefore we can wrap up that, Alternating current in Primary winding produces a relocating magnetic field which induces voltage in Secondary winding.

Applications of Step Up Transformer

Applications of Step Up Transformers include:

Step Up transformers are discovered in the electronic gadgets such as Inverters and Stabilizers where in the Transformers help in stabilizing the low voltage to the greater voltage.

Furthermore, it finds application in the distribution of electrical power.

Is there anything else I can help you with?

Here is the case study about the Step up transformer for Tesla Metapack.

tesla megapack step up transformer
tesla megapack step up transformer

Benefits of Step Up Transformers

Step Up Transformers are the requirement for the hour in the majority of the commercial and household areas. The benefits are stated listed below.

Power Sender

The Step Up transformers are in charge of sending power over fars away at a reduced expense. They achieve this by raising the voltage of the current, which decreases the resistance on the line and decreases energy losses throughout transmission. Consequently, the power supplied is used more effectively.

Continual Working.

Step Up transformers possess the capability to run constantly without interruption, establishing them aside from many electric gadgets. This difference grants a substantial benefit in the world of power distribution, where uninterrupted solution is important.


Apart from being a system to function with no break, Step Up Transformers likewise is a low maintenance device. The Step Up Transformer needs just a very little upkeep such as the oil check, substitute or fixing of damaged items and so on.

Flying start.

As soon as installed, the Transformer is quick to start up procedure without any delays or time consuming treatment.


As the innovations have been upgraded along the years, the effectiveness level of the Step Up Transformer has actually likewise enhanced. There is less wastage along the lines thus maintaining the effectiveness degree over 95%.

Drawbacks of Step Up Transformers.

As formerly stated, there is no 100% effectiveness degree. Hence there are some disadvantages in the process of Step Up Transformers.

Air conditioning System.

As the Step Up Transformer constantly does its task without any break, it requires a cooling system. Given that the Step Up Transformer can not be shut down to cool down, there has to be a provision to affix a night and day cooling system to the Transformers.

Huge in Size.

The transformer’s dimension and air conditioning system are directly symmetrical to the voltage capacity. As the voltage ability increases, the transformer’s dimension and cooling system likewise enhance, causing a bigger and extra massive transformer that uses up a lot more area.

step up small substaion transformer
step up small substaion transformer

Works for Air Conditioner (Alternate Current).

Transformers are particularly designed to raise AC voltages or Alternating Currents and are not ideal for usage with DC or Direct Current. Their usage is restricted to applications entailing air conditioning operations.

How to make step-up transformer?

The power and iron core computation formula suggests that the chosen iron core’s cross-sectional area, 40C, wants for accommodating the windings. Rather, a bigger location of 54C is needed, as calculated making use of the formula。

S=1.2×root P=1.2×root2000≈54(C㎡)

When the core permeability is 10000 Gauss, the variety of turns per volt:.

N=45/S=45/54≈0.84 (turn)。

The variety of turns of the key 12V:.

12×0.84≈10 (turns)

Secondary turns at 800V (influenced by transformer iron loss and copper loss, a 5% margin should be added):.

800×0.84×1.05≈706 (turns)

Main and secondary currents:.


I1=2000/800=2.5 ​​(A)

Main and secondary wire sizes:.

D=1.13×Radical I/δ

( The current density is  2.5~3A  per square, take 2.5 A to calculate).

D1=1.13×root number 167/2.5≈9.2 (MM)

D2=1.13×root number 2.5/2.5=1.13 (MM)

The transformer only works with rotating current. If you make use of a 4V DC power supply to rise to 220V, you additionally need an inverter circuit to transform it into a square wave or pulse waveform. This conversion procedure has a conversion effectiveness trouble.

When creating, the transformer is a step-down transformer. Taking into consideration the loss of the transformer itself, the actual ratio of the number of turns of the primary and secondary is not equal to the theoretical calculation value, yet the secondary coil is connected to a certain percent to raise the number of turns.

Now you wish to utilize the key and secondary backwards, you need to take into consideration the supply voltage to increase a specific amount of voltage to achieve your function.

How to select the design of the step-up transformer?

The model of a step-up transformer generally includes signs standing for the number of stages, cooling down technique, voltage law technique, winding core and various other materials, along with transformer capability, rated voltage, and winding connection technique.

The definition of step-up transformer design:.

The first letter: O means auto-coupling;.

The second letter indicates the variety of stages: S is three-phase, D is single-phase;

The third letter in the code represents the cooling system made use of in the transformer. F denotes oil-immersed air cooling, J shows oil-immersed self-cooling, and Prepresents compelled oil flow.

The 4th character denotes the quantity of windings, with no particular noting for double windings.

S contains 3 windings, while F consists of split windings.

The 5th letter: Indicates that the wire product L is aluminum cord, and copper cable is not marked;

Digital component: The first one stands for the transformer ability, and the second one stands for the voltage degree of the transformer. According to SJ-560/ 10, it must be a 3-phase oil-immersed self-cooling transformer with a capacity of 560KVA and a voltage of 10Kv.

“220KVA Power Supply”

The style identification number for the energy-saving S11 Transformer model is 11, and it is a fully secured product.

220kVA-indicates that the rated ability is 220kVA, stacked iron core non-excitation voltage controling oil-immersed circulation transformer, 220KVA.

Scr9-500/ 10, s11-m-100/ 10

Dry-type transformers with a serial number of 500 (100) and a capability of 9 (11VA are used cast molding in a three-phase layout.

10– ranked voltage (KV) m– airtight

Meaning of power transformer version

The transformer version commonly includes symbols that represent various facets of its style and functionality, such as the variety of stages, cooling down method, voltage law technique, winding core, and transformer capability. In addition, the model defines the ranked voltage and winding link approach.

SFSZ9-31500/ 110

The three-phase F series includes an air-cooled three-winding layout with on-load voltage law, all housed within a portable layout serial number 9.

“Powering Up: 31500kVA Capacity at Your Service”

The key side is created to operate at a voltage of 110 kilovolts.

How to maintain a step-up transformer?

1. In order to preserve the dielectric toughness of the electrostatic generator and the transformer oil mounted in the engine, it is generally not allowed to open the monitoring dialog box and unscrew the bordering fixed screws to prevent the compressor lubricating oil being damp or dirt falling. while minimizing the dielectric toughness.

2. Guarantee that the close-by lighting fixtures, warm pipe warm dissipation systems, and dust collection tools are in proper functioning order. Use a clean towel to eliminate any dirt gathered on the booster transformer body and porcelain bottle.

3. Evaluate the high-voltage tons switch located on the high-voltage area of the step-up transformer to verify that it runs efficiently, has great contact, and is adequately lubed in specific locations of the transmission system.

4. Lower the high-voltage grounding gadget knife, confirm that the grounding tool is positioned properly at the broken area, shut the high-voltage tons button, start the testing of the step-up transformer, and eliminate the indicator suggesting high voltage on the transformer’s high-voltage side. It is crucial to have around two individuals present when detaching or covering the high-voltage load switch of the step-up transformer.

5. When it is required to replace the brand-new oil, the local power department should help, inspect the attributes of the brand-new oil, and specify that the compressive strength of its protecting layer is higher than 30000V/2.3 mm; and the compressive stamina of the oil protecting layer in the engine Should be around 35000V/2.3 mm.

6. Utilize a 3000V shaker to accurately determine the insulation layer resistance of the high-voltage and low-voltage electro-magnetic coils of the booster transformer, and confirm that it fulfills the demands. When the interior temperature level is 40℃, the high-voltage side of the 1OKV step-up transformer surpasses 30M℃ and the bottom-voltage side exceeds 12M℃. Prior to the test, the cable of the grounding gadget need to be attached. After the measurement, the charging and discharging must be accomplished.

Guarantee that the step-up transformer or element engine features robust and trustworthy cord connections. To validate their integrity, utilize an ohmmeter to determine the resistance throughout the housing, control panel housing, and external wire joints. In addition, tighten up the support bolts safeguarding the grounding gadget to ensure a secure connection.

What is a DC step-up transformer?

The DC step-up transformer has the attributes of little dimension, lightweight, compact structure, full functions, solid convenience and practical use.

It is particularly suitable for power systems, commercial and mining ventures, scientific study divisions, and so on to carry out dielectric toughness examinations on various high-voltage electric tools, electric elements, and insulating products under frequency or DC high voltage. It is a necessary and crucial devices in high pressure test.

Essential Characteristics and Technical Details

Streamlined Solution: Megapack includes battery systems, a two-way inverter, heat management system, and air conditioning main breaker in a solitary, pre-assembled housing. This integrated design makes it possible for swift and cost-efficient installation while keeping first-class performance and dependability.

Optimization Software: Developed along with the Megapack hardware, Tesla’s exclusive software program can autonomously manage cost and discharge cycles, predict local energy patterns, and deal smooth SCADA combination. This enables the assimilation of co-located renewables and participation in energy markets.

Boosted System Safety: Safety is a vital interest in Megapack, featuring parallel DC/DC converters, incorporated heating & cooling at the cell level, and devoted danger airing vent. The style meets international safety and security standards, assisting in simplicity of permitting.

Tesla’s advanced upright assimilation guarantees top-notch integrity, as it deals with equipment style, sourcing, and software application advancement in-house. This extensive strategy permits customized optimizations, such as the Megapack cooling system, which supplies remarkable thermal administration while maintaining HVAC energy usage in check.

Cost-Effectiveness: Megapack’s style dramatically minimizes design, procurement, and building (EPC) prices. Delivered totally put together and pre-tested, setup calls for only seismic anchoring and the connection of a/c conductors and an interaction wire.

Global Service Footprint: Tesla supports Megapack with a detailed service offering, covering all components throughout the item life. Clients benefit from a single point of contact, backed by Tesla’s functional fleet information, which educates upkeep models and efficiency warranties.

Qualities of DC boost transformer

Reliable and Quiet Energy Use

Premium cold-rolled silicon steel sheets are made use of for piling, including full oblique joints that guarantee robustness. Advanced handling techniques are used to minimize resonance and sound throughout operation, leading to a transformer that is not only much more energy effective yet additionally quieter. Furthermore, the incorporation of advanced products, procedures, and modern technologies, such as computer system optimization, additional enhances the transformer’s efficiency and performance.

High reliability

Our constant objective is to boost the quality and stability of our items. We perform many basic studies in quality control and integrity engineering, and we actively seek dependability certification to boost the reliability and long life of transformers.

Lasting Elements

It has warm resistance, moisture resistance, stability, chemical compatibility, low temperature resistance, radiation resistance and non-toxicity.

What is an A/c Step-Up Transformer?

A device that changes a/c voltage, existing, and resistance is referred to as an air conditioning step-up transformer.

An alternating current travelling through the key coil creates an alternating electromagnetic field in the iron core, resulting in the production of a voltage or present in the secondary coil with electro-magnetic induction.

The AC step-up transformer consists of an iron core (or magnetic core) and a coil. The coil has two or even more windings. The winding linked to the power supply is called the key coil, and the rest of the windings are called second coils.

This transformer flaunts a petite footprint, a featherlight weight, a streamlined design, a considerable range of capabilities, excellent adaptability, and unrivaled user-friendliness.

AC step-up transformers are especially ideal for power systems, industrial and mining business, clinical study divisions, etc to perform dielectric stamina tests on different high-voltage electrical equipment, electrical components, and shielding materials under frequency or air conditioner high voltage.

The air conditioner step-up transformer is a crucial and crucial devices in the high-voltage examination.

A low frequency step-up transformer is a sort of transformer that enhances the voltage of a low-frequency rotating current (AIR CONDITIONER) signal.

The low frequency a/c step-up transformer core change is connected to the applied voltage.

The area existing remains constant even as the lots rises.

Although the iron core will certainly not fill when the load raises, the resistance loss of the coil will certainly boost, and the coil will certainly be damaged if the heat created by the coil can not be dissipated in time when the ranked ability is surpassed.

Using a superconducting coil stops warmth generation from raising current, but impedance is still an issue as a result of magnetic leakage within the AC step-up transformer.

When the present boosts, the output voltage will drop. The better the present, the reduced the outcome voltage, so the output power of the transformer can not be infinite.

If you rehash, the transformer has no resistance. Then when the transformer moves with the existing, it will produce a specifically large electrical force, which will quickly damage the transformer coil. Although you have a transformer with unrestricted power, it can not be used.

It is feasible to observe that the improvement of superconducting materials and iron core products results in a rise in the output power of transformers of comparable volume or weight, although this rise is not unlimited.

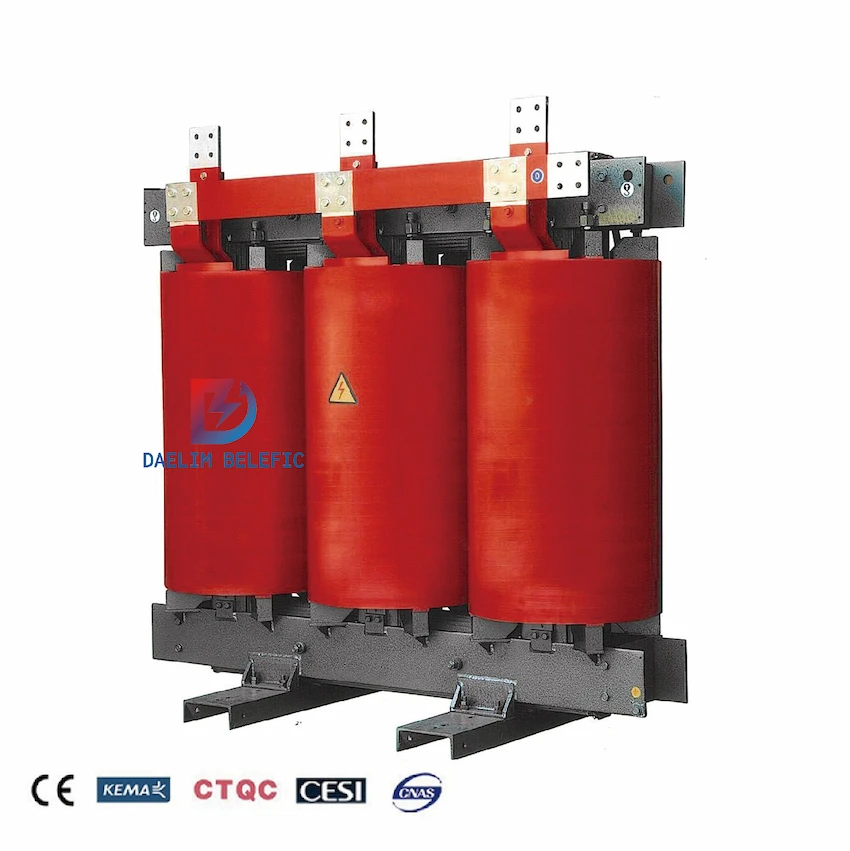

What a dry-type step-up transformer is?

The lack of oil in a dry-type step up transformer eliminates the dangers of fire, explosion, pollution, and other concerns. As a result, according to electrical standards and regulations, there is no need to house the dry-type transformer in a different room.
Specifically in the new series, the loss and noise have actually been decreased to a brand-new level, producing problems for the transformer and the low-voltage screen to be placed in the same power circulation area.
The risk-free operation and life span of dry-type booster transformers largely depend upon the safety and reliability of the transformer winding insulation.
The winding temperature exceeds the insulation withstand temperature and the insulation is damaged, which is among the major reasons that the transformer can not function typically.
Consequently, the tracking of the operating temperature level of the transformer and its alarm control are very essential. According to the qualities of the use atmosphere and security requirements, the dry-type step-up transformer can select different cases.
IP23 safety casing is usually used, which can stop strong international items larger than 12mm in diameter and tiny animals such as mice, snakes, felines, and sparrows from getting in, triggering savage failings such as short-circuit and power failing, and supplying a security barrier for real-time components.
An IP23 safety room may be chosen if the transformer needs to be installed outside.
The transformer unit not only uses IP20 defense yet likewise defend against water droplets within a 60 ℃ angle from the upright line. Nevertheless, picking an IP23 enclosure will certainly diminish the transformer’s cooling ability, so consider its minimized operating capacity when choosing.

What's inside the Step up transformer?

The primary elements inside the step-up transformer consist of: winding, magnetic core, primary insulation, additional insulation, and protective covering.

The details provided in this article acts as an overview, utilizing the interior framework of a 800kv step-up transformer as a case in point.


Plan of coils

As the item operates on a single phase, the coils are positioned at the center of the primary column (1) of the single-phase three-column iron core in order to minimize the total dimension and weight.
In the previous transformers of this degree, in order to stop the rise in the quantity of the iron core and the high-voltage coil and minimize the leakage flux of the coil, most of the coil designs embraced the so-called dual concentric braid framework, and the high-voltage coil was split into the line side and the center. Sexual point side two components.
The sequence begins with the iron core column, adhered to by the high-voltage neutral-point side coil, then the low-voltage coil, and lastly the high-voltage line-side coil.
Nevertheless, in this 800kV transformer, in order to raise the iron core, minimize the copper loss, minimize the variety of turns, streamline the coil structure, and enhance the dental filling aspect, an average double-coil framework that does not separate the high-voltage coil is embraced.
The core column’s cross-section and the coil’s leakage change are similar to those discovered in a 1200-1300 MVA three-phase transformer with a double concentric setup.
By executing a range of brand-new technologies, the product quality is assured, and the advantages of the conventional double-coil setup are made best use of.
The faucet lead is now drawn directly from the high-voltage coil, getting rid of the demand for a protecting cylinder that was previously utilized to wind the voltage regulating coil individually from the major coil. This streamlined design simplifies the total structure.
To decrease stray losses and electro-magnetic mechanical forces, the setting of the split-pressing head’s lead-out was readjusted, and the outward bound taps lay appropriately.

High voltage coil

The high-voltage coil takes on a high series capacitive coil with excellent dental filling factor and uniform voltage distribution in the coil when it undergoes lightning impulse voltage.
This specific coil shows outstanding resistance to lightning. It shares the basic framework with the multi-layer cylindrical coil utilized in 500kv transformer high-voltage coils.
The coil structure in question is widely adopted in transformers utilized within substations, where strict transport restraints remain in area and small design is important.
This kind of coil is wound in two areas, with one area for the top component and an additional for the reduced part. The end of the coil with high voltage is put in the middle of the electrode shape, while the neutral point with reduced voltage is positioned at the top and base of the coil.
By reducing the area between the coil and the iron yoke, the electrical field is relieved, and the electrostatic securing formerly positioned at the top and bottom of the coil can be gotten rid of.
When lightning impulse voltage is used, intricate prospective oscillation takes place on the voltage controling coil, causing incredibly high voltage.
Consequently, utilizing the equivalent loop considering the stray capacitance and inductance in the coil, the prospective oscillation in the coil is computed, the possible oscillation of the voltage regulating coil is understood, and the insulation framework of the primary coil and the voltage regulating coil is figured out.
The coil cord is covered with paper, which can make the section of the system conductor tiny without decreasing the loading factor and decrease the swirl present loss in the conductor.
Coil for low power usage.
The current on the low-voltage coil can additionally reach 15 kA, so a spiral coil framework made up of more than 150 wires wound in parallel is utilized.
In order to make the interlinkage leakage flux between the conductors uniform, the conductors are transposed so that there is no circulating present in between the identical conductors.
In addition, to stay clear of the storage tank wall surface from overheating because of the high existing magnetic field on the low-voltage lead, the low-voltage lead linking the low-voltage coil and the bushing is split right into 2 different loopholes. These loopholes are individually linked to the bushing via their assigned pathways.

Core structure

As a result of the high voltage ranking of the 800 kV step-up transformer and the restraints related to its size and weight throughout transportation, there are 2 core arrangements that are suitable for use.

“Organizing Information: A Four-Column Approach”

“Reimagining the Layout: A Shift to Three Columns”

At present, the majority of the 800 kV transformers are developed as three-column by enhancing the core framework and material or embracing the outer core innovation.

According to the specific problems of the job, the core of the step-up transformer embraces a three-column structure.

Insulation material primary

Transformers with huge capabilities and iron cores remain to rely upon oil-based insulation systems to separate their electrical parts.

In order to meet the demands of the insulation performance of high-voltage power transformers, specifically for 800 kV step-up transformers, not just the oil-separator structure is required to have a greater malfunction voltage, but likewise a higher initial partial discharge voltage.

Primary activities include:

Take on composite insulation structure. For instance, an unique shielding structure is used for the terminal electrical area, so that the partial discharge creation voltage is increased by 40%;.
The use of molded insulating parts in the irregular electrical field location solves the technological issues of high-voltage protecting structure and leads. The basic need of using shaped components is to make the protecting separator and the equipotential line as regular as possible, so as to enhance the creepage performance of the insulating framework;
Think about the transformer air conditioning system. Enhance the cooling efficiency of the transformer by incorporating the insulation structure design with the air conditioning system.
Research study new shielding materials.

Longitudinal insulation

 The major factor to consider for longitudinal insulation is to make the first circulation as near to the last distribution as feasible to slow down the coil oscillation and reduce the gradient voltage between the coils.
Currently, the power field mainly utilizes outside transformers with ultra-high voltage step-up capacities or straight utilizes ultra-high voltage step-up transformers.
Capacitive coils or wiring are regularly utilized to control the slope between cakes at 8%.
It is chosen that the longitudinal capacitance of the coil order to decrease the gradient the coil type.

Protecting steps

The powerful transformer at the power station produces a substantial magnetic field that can cause noteworthy leakage when its ranked current is surpassed. If the leak exceeds a particular threshold, the surrounding location will certainly experience considerable energy loss, resulting in elevated temperatures and possible overheating problems.
A practical protecting method can not only reduce contamination loss, yet likewise get rid of regional getting too hot.
The examination into shielding techniques should encompass not only the high present lead path’s metal make-up however also the application of a magnetic shunt at the coil’s terminus.
Some step-up transformers utilize non-magnetic steel or stainless steel along with the pull plate, high-current riser, and low-voltage sloping roofing system, and some connecting clips likewise use non-magnetic steel.
To enjoy the complete benefits, it’s crucial to take into consideration not only the price of the parts yet likewise their low-temperature homes.
The gas container presently adopts a combination of magnetic shielding and electromagnetic securing.
