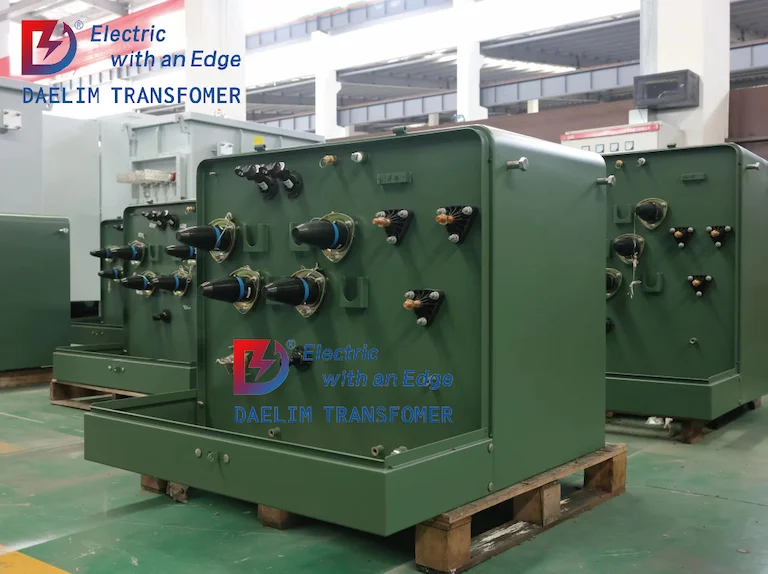

Pad-Mounted Transformer Safety Regulations in the United States

Safety Regulations for Pad-Mounted Transformers in the U.S.

Ensuring the safety of pad-mounted transformers involves adhering to several laws and regulations in the United States. These regulations are designed to protect both the public and workers from potential hazards associated with electrical equipment. Here are the key regulations and standards:

National Electrical Safety Code (NESC)

The NESC, published by the Institute of Electrical and Electronics Engineers (IEEE), sets the ground rules for the installation, operation, and maintenance of electrical power and communication utility systems, including pad-mounted transformers. Key aspects include:

  • Clearance Requirements: Ensuring sufficient clearance around transformers for accessibility and safety.
  • Grounding and Bonding: Proper grounding and bonding of transformers to prevent electrical shock and ensure stability.
  • Enclosures and Barriers: Requirements for secure enclosures to prevent unauthorized access and protect against environmental factors.

National Electrical Code (NEC)

The NEC, also known as NFPA 70, is a regionally adoptable standard for the safe installation of electrical wiring and equipment in the United States. Relevant sections for pad-mounted transformers include:

  • Article 450: Covers the installation requirements for transformers, including ventilation, protection from physical damage, and grounding.
  • Clearance Distances: Specifies minimum clearance distances from buildings and other structures to ensure safe operation and maintenance.

Occupational Safety and Health Administration (OSHA)

OSHA regulations ensure workplace safety, including the safety of workers who install, maintain, and operate pad-mounted transformers. Important standards include:

  • 29 CFR 1910.269: Regulations specific to electric power generation, transmission, and distribution, including safe work practices for maintenance and operation.
  • Personal Protective Equipment (PPE): Requirements for appropriate PPE for workers handling electrical equipment.

American National Standards Institute (ANSI) Standards

ANSI provides various standards that apply to pad-mounted transformers, focusing on performance and safety. Relevant standards include:

  • ANSI C57.12: Specifications for pad-mounted, compartmental-type transformers.
  • Labeling and Marking: Ensures that transformers are properly labeled with safety warnings and operational information.

Local and State Regulations

In addition to national standards, local and state regulations may impose additional requirements for the installation and maintenance of pad-mounted transformers. These regulations can vary, so it’s important to consult with local authorities to ensure compliance.

Ensuring Compliance

To ensure compliance with these regulations:

  • Regular Inspections: Conduct regular inspections and maintenance to adhere to safety standards and identify potential hazards.
  • Qualified Personnel: Ensure that installation and maintenance are performed by qualified personnel who are familiar with the relevant regulations and safety protocols.
  • Public Education: Educate the public and workers about the importance of adhering to safety regulations and the dangers of tampering with electrical equipment.
